Complete Pre-Engineered Fire Detection & Suppression Systems
MAE Series complete pre-engineered fire detection & suppression systems are A-B-C Rated using FK-5-1-12 clean extinguishing agent.
Fireboy MAE Series System Advantages
Land-based clean agent applications such as server rooms and laboratories up to 5,400 cubic feet (with FK-5-1-12)
Pre-Engineered System
Unique “Proofing Pin” System to Verify Extinguisher is Active
Multi-extinguisher Systems Now Available
All Components Included in the Kit
Fast Installation with One Technician
Competitively Priced Total Installed Cost
No Engineering or Piping Calculations Required
The MAE Fire Suppression System is Perfect for Use In
Server Rooms
Laboratories
Computer Rooms
Control Rooms
Records & Data Centers
Media Storage
Reference Material
Clean Rooms
Grow Rooms & Labs
Telecommunication Centers
Flammable Liquid Storage
Robotic Equipment
Textile Manufacturing
Electric Utility Facilities
Testing / Image Equipment
Military Applications
Historical Collections
Other Enclosed Spaces
The Fireboy MAE System is Pre-Engineered And FM Approved
The MAE System is a complete pre-engineered, FM approved, Fire Detection and A-B-C Suppression system using FK-5-1-12 clean extinguishing agent and a patent pending electric release including:
Two (2) Smoke Detectors, Photo-Electric
One (1) Pull Station
One (1) Fire Bell

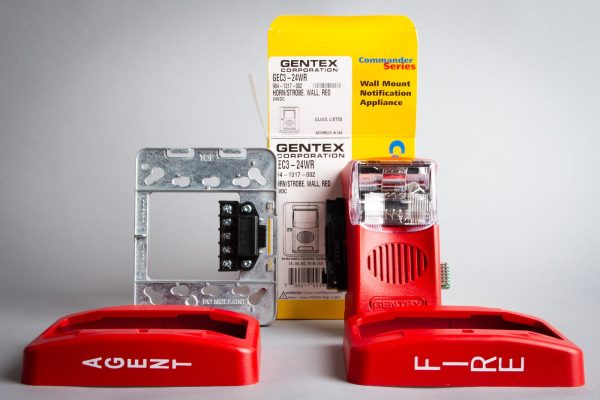

Two (2) Horn/Strobes
Release Panel Available in Red or Gray Finish
One (1) Abort Switch
One (1) Disablement Switch
Pre-engineered MAE Suppression System (155°F/68°C) with FK-5-1-12 Clean Extinguishing Agent
One (1) Extinguisher Circuit Test Module
Two (2) Caution / Warning Signs
Unique Safety Pin Supervision System
Power Supply and Safety Pin are Supervised by the Release Panel
Quick Connect Electrical Connectors
Easy Installation
MAE Multi-extinguisher Systems
MAE pre-engineered Fire Detection and Suppression systems now expanded to coverup to 5,400 cu. ft. The control system stays the same and additional extinguishers of the same size can be added to the system.
When used on a multiple extinguisher MAE system “-40”each extinguisher includes an empty bulb and burst disc.
All extinguishers need to be the same size, totaling the actual protected volume.

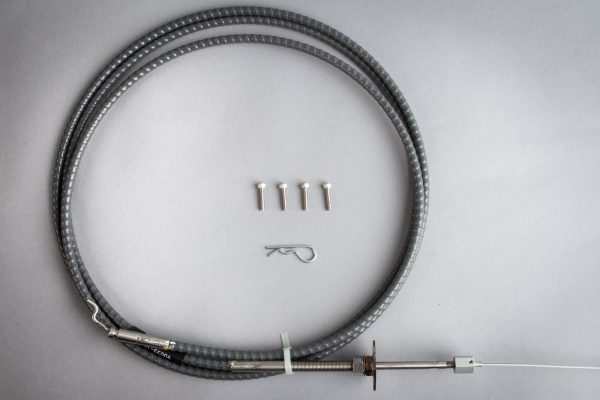

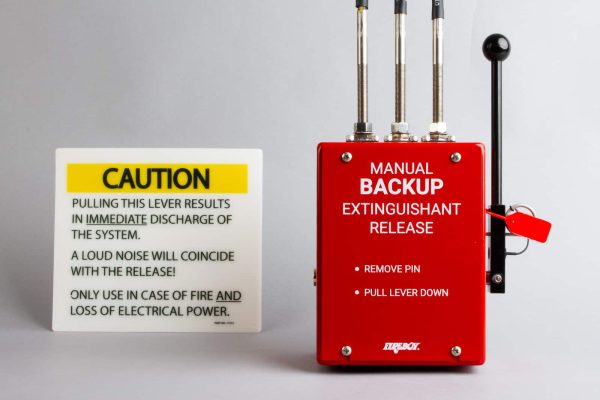

A “manual backup extinguishant release” system is also included.
Fireboy MAE System Application Parameters
Single Extinguisher System Up to 1,800 cu. ft.
Multiple Extinguisher System Up to 5,400 cu. ft.
Maximum Ceiling Height is 16 ft.
Maximum Reach is 21.0 ft.
Locate Extinguisher Nozzle(s) Within 24 in. of Ceiling
MAE System Installation

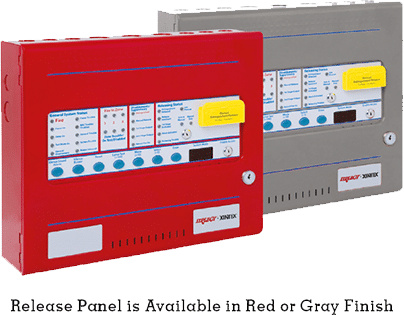

Release Panel
Large LED Display
UL864 and FM Approved
Supervision of Power Supply and “Proofing Pin”
Configurable First Stage NAC Delays
Configurable Detection Delays
Configurable Releasing Delays Up to 60 Seconds in 5 Second Steps
Available in Red or Gray Finish
115/1/60 or 230/1/50 or 60 Supply Voltage
Customize With System Options
and Additional Components
